Mint Plant Marker

Mint Plant Marker

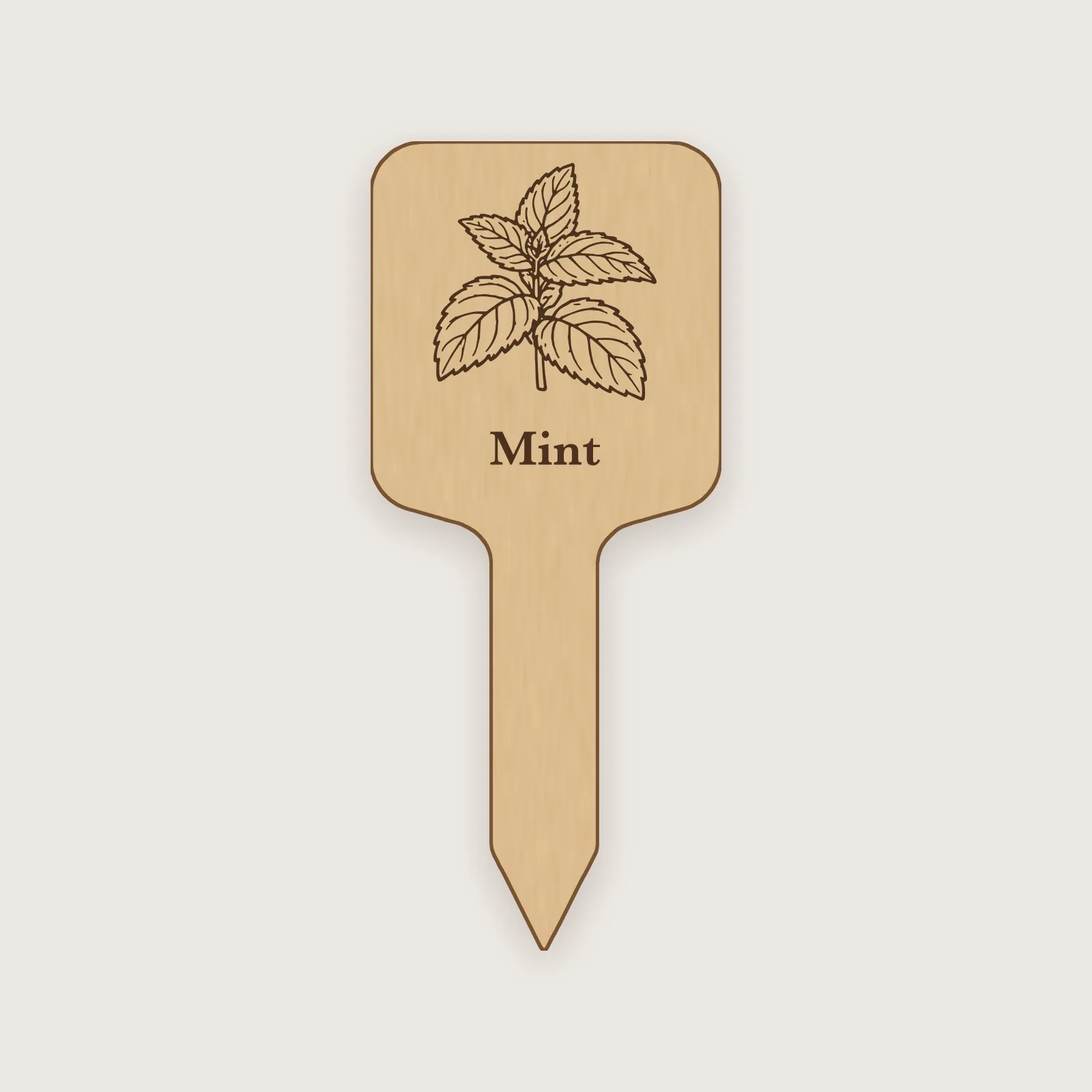

A 3 mm plywood marker to push into the pot, with a sprig of mint engraved and the name underneath. 5.6 × 13 cm. The name can be changed; a coat of clear varnish helps it last in damp soil.

EngraveCutYour text
Open in Lùmen Download SVG

Opens on your Mac with Lùmen 3.3 or later: material, operations and power already set for your laser. .lumen file

No Lùmen yet? Try it free for 3 days.

Size
5.6 × 13 cm
Material
Plywood · 3 mm
Laser
Engrave + Cut
Text
Editable — type your own
Drawing
AI-generated, then retouched and set up for the laser by Dimitri Giani
License
Public domain: use it for anything, also on things you sell, no credit needed · CC0-1.0

How to make it

  1. Open it in LùmenThe project opens with its material chosen and the power adapted to your laser — 3 W or 20 W, it does the arithmetic.
  2. Write your textThe name is already selected: type yours. It stays centred.
  3. Place the material and frame itPut plywood on the bed, set the zero where you want the piece, and press Frame to see where it lands.
  4. EngraveLùmen engraves first and cuts last, so the piece stays put until it is finished.

Settings for other software

The SVG follows the usual colours: black is engraved, red is cut, blue is a light score line, sizes in millimetres. These are the starting numbers Lùmen uses for plywood, measured on a 3 W diode laser — on a stronger laser, lower the power and run a test first.

Operation Speed Power Passes
Engrave 1,500 mm/min 90 % 1
Cut 200 mm/min 100 % 3
